Dijkstra's Algorithm

one of the most famous and widely used algorithms

the shortest path between the  vertices.



Edsger Dijkstra, a Dutch programmer



Useful for



• GPS - finding fastest route
• Network Routing - finds open shortest path for data
• Biology - used to model the spread of viruses among humans
• Airline tickets - finding cheapest route to your destination
• Many other uses!



thr first thing is we need to do is adding a weight (associated value) to the graph.

class WeightedGraph {
  constructor() {
    this.adjacencyList = {};
  }
  addVertex(vertex) {
    if(!this.adjacencyList[vertex]) this.adjacecyList[vertex] = [];
  }
  addEdge(vertex1, vertex2, weight) {
    this.adjacencyList[vertex1].push({node:vertex2, weight});
    this.adjacencyList[vertex2].push({node:vertex1, weight});
  }
}

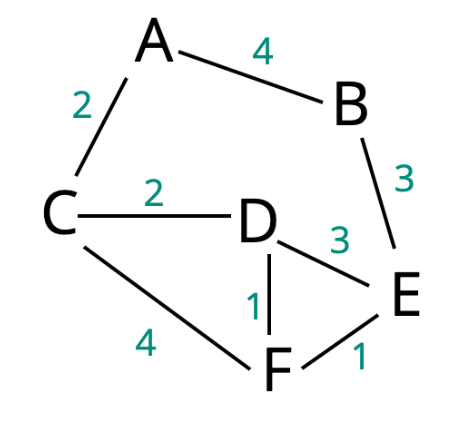

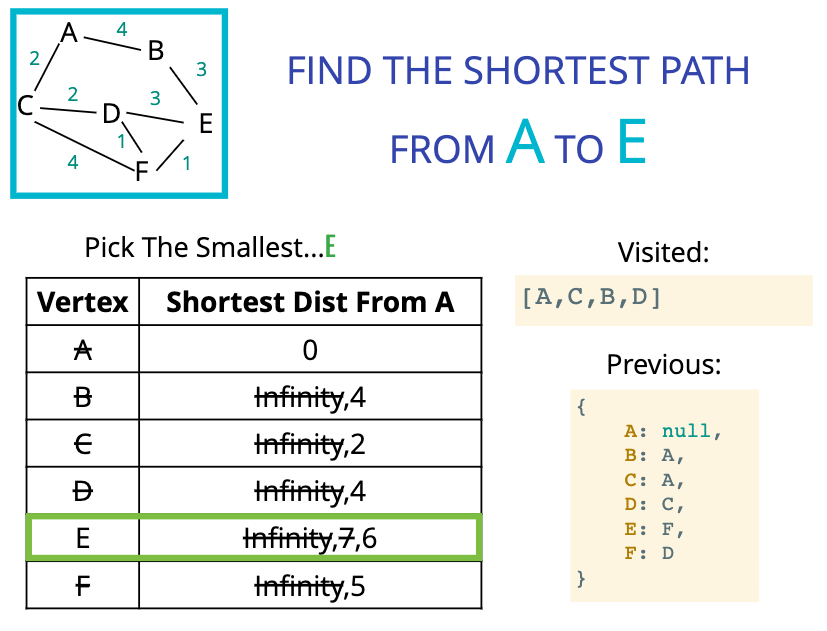

Find the shortest path from A to E





Dijkstra's algorithm works not only to give the shortest path between two nodes.

at the end, the way of implementing it, we'll have a data structure that gives the shortest path from A to all the nodes.





A priority queue how that played a role in the algorithm

to find the next smallest one to visit.



everytime you add something to it, you give it a priority.

and get the smallest out first.

class PriorityQueue {
  constructor() {
    this.values = [];
  }
  enqueue(val, priority) {
    this.values.push({val, priority});
    this.sort();
  }
  dequeue() {
    return this.values.shift();
  }
  sort() {
    this.values.sort((a,b) => a.priority - b.priority);
  }
}



Dijkstra's Pseudocode



• This function should accept a starting and ending vertex
• Create an object (we'll call it distances) and set each key to be every vertex in the adjacency list with a value of infinity, except for the starting vertex which should have a value of 0.
• After setting a value in the distances object, add each vertex with a priority of Infinity to the priority queue, except the starting vertex, which should have a priority of 0 because that's where we begin.
• Create another object called previous and set each key to be every vertex in the adjacency list with a value of null
• Start looping as long as there is anything in the priority queue
  • dequeue a vertex from the priority queue
  • If that vertex is the same as the ending vertex - we are done!
  • Otherwise loop through each value in the adjacency list at that vertex
    • Calculate the distance to that vertex from the starting vertex
    • if the distance is less than what is currently stored in our distances object
      • update the distances object with new lower distance
      • update the previous object to contain that vertex
      • enqueue the vertex with the total distance from the start node



class WeightedGraph {
  constructor() {
    this.adjacencyList = {};
  }
  addVertex(vertex) {
    if(!this.adjacencyList[vertex]) this.adjacecyList[vertex] = [];
  }
  addEdge(vertex1, vertex2, weight) {
    this.adjacencyList[vertex1].push({node:vertex2, weight});
    this.adjacencyList[vertex2].push({node:vertex1, weight});
  }
  dijkstra(start, finish) {
    const nodes = new PriorityQueue();
    const distances = {};
    const previous = {};
    let smallest;
    let path = []; // to return at the end


    // build up initial state
    for(let vertex in this.adjacencyList) {
     if(vertex == start) {
       distances[vertex] = 0;
       nodes.enqueue(vertex, 0);
     } else {
       distances[vertex] = infinity;
       nodes.enqueue(vertex, Infinity);
     }
     previous[vertex] = null;
    }

    // as long as there is something to visit
    while(nodes.values.length) {
      smallest = nodes.dequeue().val;
      if(smallest == finish) {
      // we are done.
      // build up path to return at end
        while(previous[smallest]) {
          path.push(smallest);
          smallest = previous[smallest];
        }
        break;
      }
      if(smallest || distances[smallest] !== Infinity) {
        for(let neighbor in this.adjacencyList[smallest]) {
         // find neighboring node
         let nextNode = this.adjacencyList[smallest][neighbor];
         // calculate new distance to neighboring node
         let candidate = distances[smallest] + nextNode.weight;
         let nextNeighbor = nextNode.node;
         if(candidate < distances[nextNode.node]) {
           // updateing new smallest distance to neighbor
           distances[nextNeighbor] = candidate;
           // updating previous - how we got to neighbor
           previous[nextNeighbor] = smallest;
           // enqueue in priority queue with new priority
           nodes.enqueue(nextNeighbor, candidate);
         }
        }
      }
    }

    return path.concat(smallest).reverse();
  }
}





Using a binary heap priority queue is much faster than using a priority queue above.
